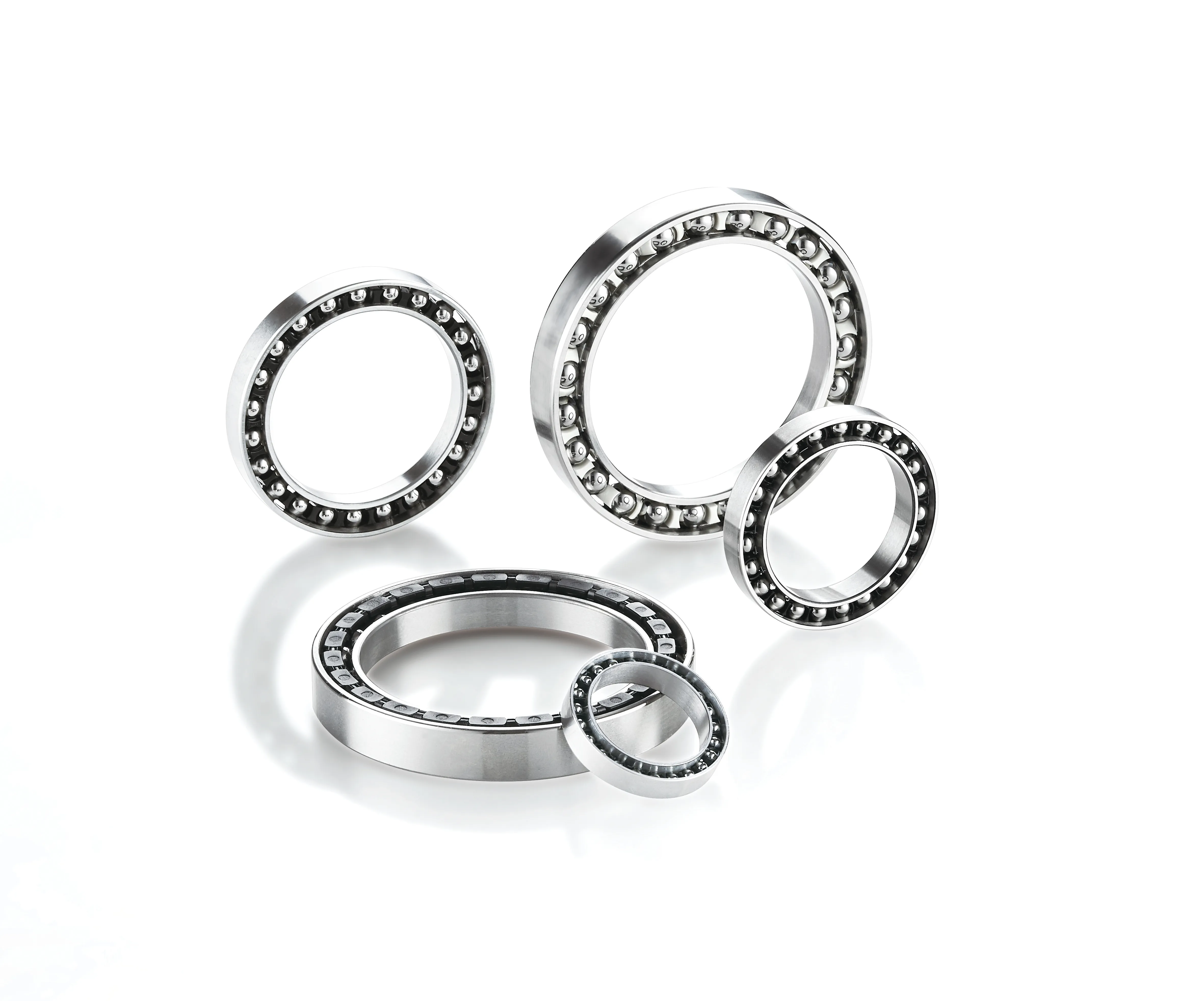

Flexible / Thin-Section Bearing
HCH flexible bearings (thin-section bearings) feature ultra-thin cross-sections, lightweight design, and high rigidity, delivering precision rotary support in compact spaces. With a constant cross-section design, they are ideal for robot joints, aerospace gyroscopes, medical devices, and precision rotary tables where space and weight are critical.
- ✓ Thin-section profile design
- ✓ Precision: P5 / P4
- ✓ Material: bearing steel / stainless steel
- ✓ Lightweight: 30%-50% weight reduction
Technical Specifications
Product Features
Ultra-Thin Constant Cross-Section
The constant cross-section design keeps the section constant as bore and OD change, greatly saving installation space and weight.
30%-50% Weight Reduction
Significantly lighter than conventional bearings, meeting the lightweight demands of aerospace, robotics, and similar applications.
High Rigidity & Precision
P5/P4 high precision provides stable precision rotary support in compact spaces.
Material Options
Bearing steel and stainless steel options to suit corrosion-resistant and other special operating conditions.
Typical Applications
With their ultra-thin cross-sections and high rigidity, HCH flexible thin-section bearings are widely used in precision equipment with strict space and weight requirements:
Robotics
Joint modules, harmonic reducers
Aerospace
Gyroscopes, precision rotary tables
Medical Devices
CT, medical imaging
Precision Instruments
Rotary tables, optical equipment
